Optune Technologies Inc.
PRODUCTS
Optune Technologies Inc. serves the sensing-instrument, data-access network, and medical equipment markets. Our technology is based on advanced liquid-crystal tunable and semiconductor-laser packaging techniques, offering a low-cost alternative to conventional laser and fiber-amplifier solutions.
Our lasers operate across a wavelength window from 1265 nm to 1650 nm, offering excellent optical stability and performance. Devices are available in traditional butterfly and small-form-factor packages. We provide 100 mW C-band lasers, C-band optical amplifiers, and TO-56 laser modules with TEC, all designed and manufactured in the USA.
-
Products
-

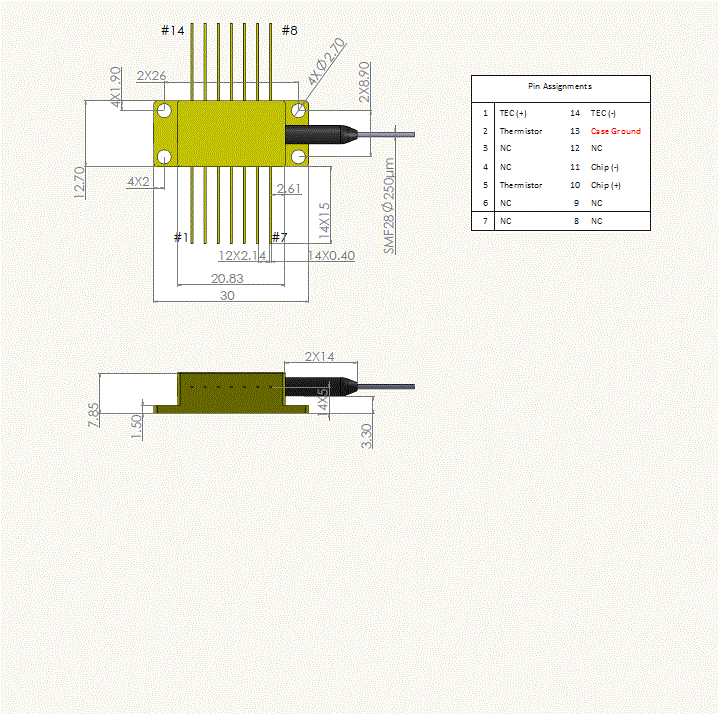

High Power Wavelength Selected Laser(Optune-LD-XXXX)
Optune-LD-XXXX wavelengths comply with ITU recommendations in range 1527.61 to 1610nm and channel definition, alse can be customer-selected from 1480-1650nm. It shows high side mode suppression ratios, very low relative intensity noise, and small linewidths.
Optune-LD-1502 Datasheet -
C-Band SOA
Optune-MSOA-1550 operates in the 1550 nm window. It extends telecommunications links by providing 18–30 dB gain, low polarization-dependent gain (PDG < 2.0 dB), and output saturation power up to 10 mW. Used in-line, these amplifiers can extend link reach; typical amplifier spacing is 30–40 km and total distances of >200 km are possible.
-

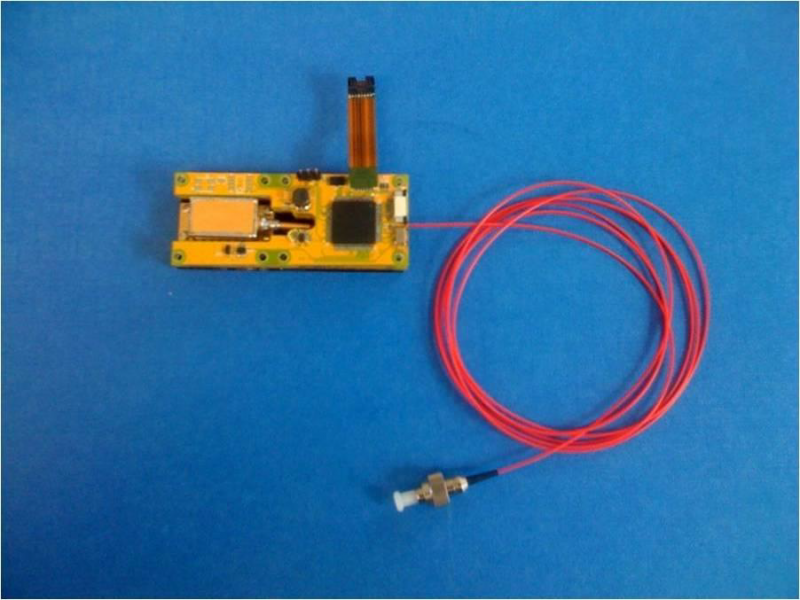

Tunable Laser
Optune-TL-1550 tunes across the C-band on the ITU grid with 50 GHz channel spacing.
-

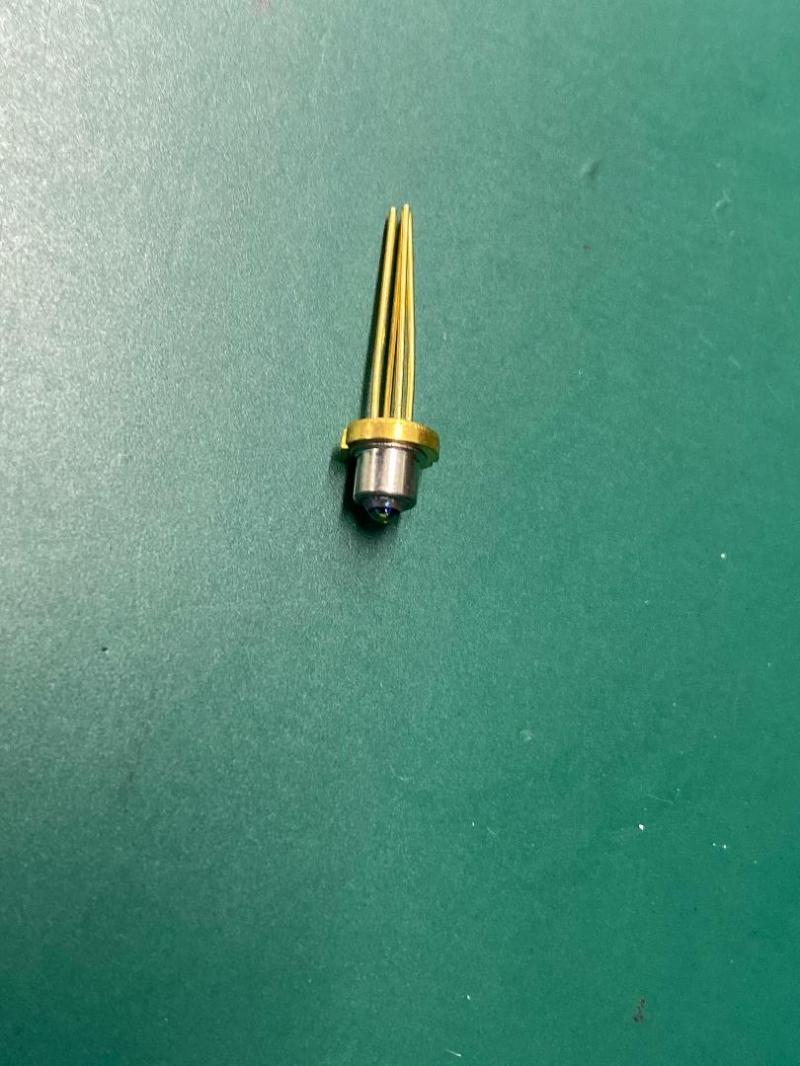

TO-56 with TEC
We provide TO-56 optical modules with an integrated thermoelectric cooler (TEC). Standard wavelength options: 635 nm, 1310 nm, and 1550 nm
Optune-TTO-635
Optune-TTO-1310
Optune-TTO-1550
-

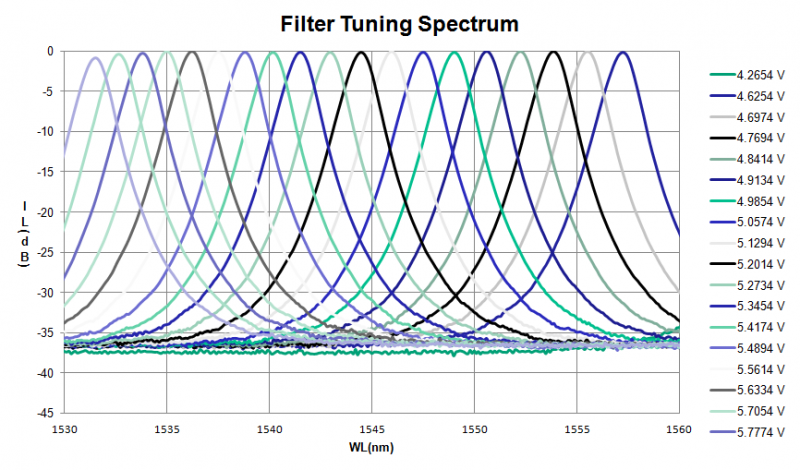

Tunable Filter
We provide a tunable optical filter with low insertion loss and no moving parts, covering 1530–1565 nm.
